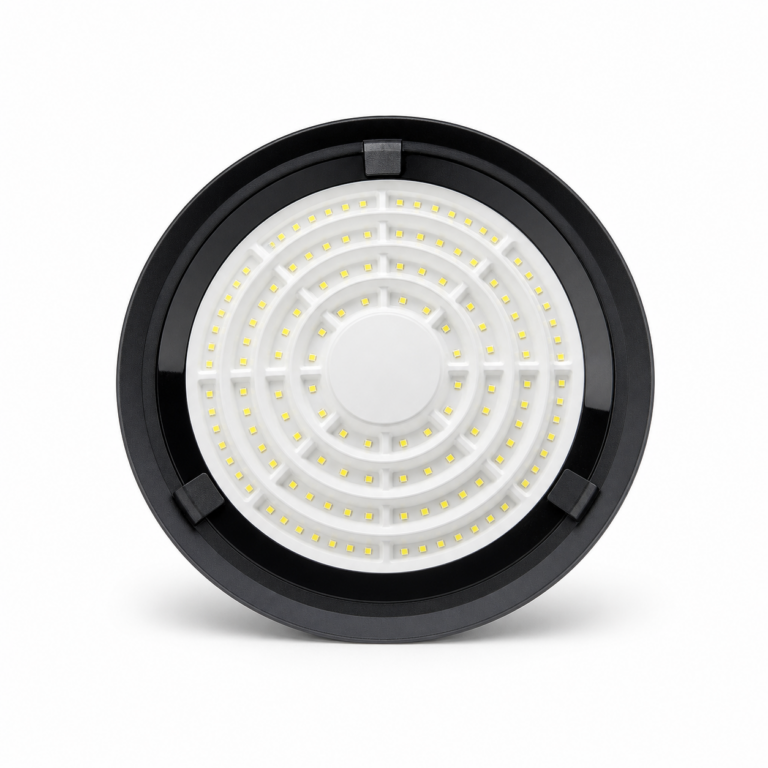

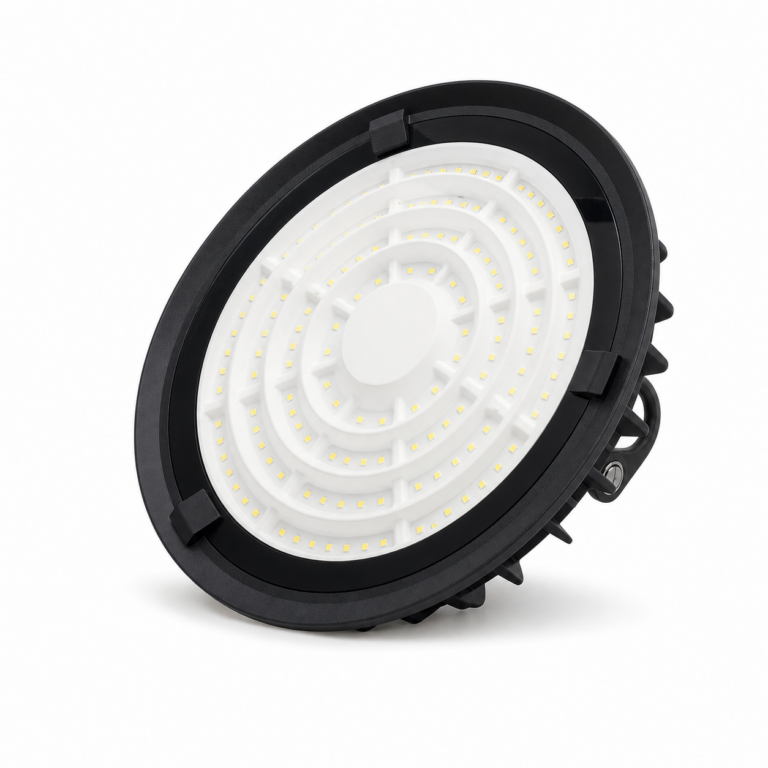

The Highbay Fitting UFO LED IP65 is a hanging type SMD highbay light fitting for high-ceiling commercial and industrial spaces. Its UFO-style body, IP65 rating and listed wattage options make it suitable for applications where strong overhead lighting is required.
Key Benefits
- Available wattage options: 100W, 150W and 200W.
- IP65 rated fitting for protection against dust and water ingress.
- 100 degree beam angle for broad overhead light distribution.
- Aluminium ADC12#, glass and PCB construction listed for the fitting.
- SMD3030 LED chip with CRI greater than 70 and 110 lm/W listed output efficiency.
- Power factor greater than 0.9.
- Linear version driver.
Ideal Applications
- Warehouses and storage areas
- Factories and production floors
- Workshops
- Retail or commercial spaces with high ceilings
- Covered industrial areas requiring IP65-rated lighting
Specifications
| Product Type | UFO LED highbay fitting |
|---|---|
| Mounting Type | Hanging type SMD |
| Wattage Options | 100W, 150W, 200W |
| Material | Aluminium ADC12# + glass + PCB (UL) |
| Beam Angle | 100 degrees |
| LED Chip | SMD3030, CRI > 70, 110 lm/W |
| Driver | Linear version |
| Power Factor | > 0.9 |
| Surge Protection Options | 6kV (2Ω) |
| Voltage Resistance | L-N/PE: 1.5KVac, <5mA, 60S |
| Input Voltage | AC220-265V / 50-60Hz |
| Wire Specification | 3 x 0.75mm² x 25cm VDE |
| IP Grade | IP65 |
| IK Grade | IK08 |
| Working Temperature | -20~45°C |
Ordering And Installation Checks
- Confirm the required wattage before ordering: 100W, 150W or 200W.
- Check ceiling height, mounting point and hanging hardware requirements before installation.
- Confirm the required light colour temperature before purchase, as it is not specified here.
- Use a qualified electrician for electrical installation and site compatibility checks.
Frequently Asked Questions
Is this highbay fitting IP rated?
Yes. The listed IP grade is IP65.
What wattages are available?
The listed wattage options are 100W, 150W and 200W.
What input voltage does it support?
The listed input voltage is AC220-265V / 50-60Hz.
Can it be used in warehouses?
Yes, this type of UFO LED highbay fitting is commonly used for high-ceiling commercial and industrial spaces such as warehouses, subject to proper site assessment and installation.
