Energy kWh meters are used to measure electrical energy consumption in single phase and three phase installations. The available options include DIN rail type and wall mounted type meters, with supported variants for 40A and 100A applications.
Available Types
- DIN rail type single phase 40A
- DIN rail type three phase 100A
- Wall mounted type single phase 40A
- Wall mounted type single phase 100A

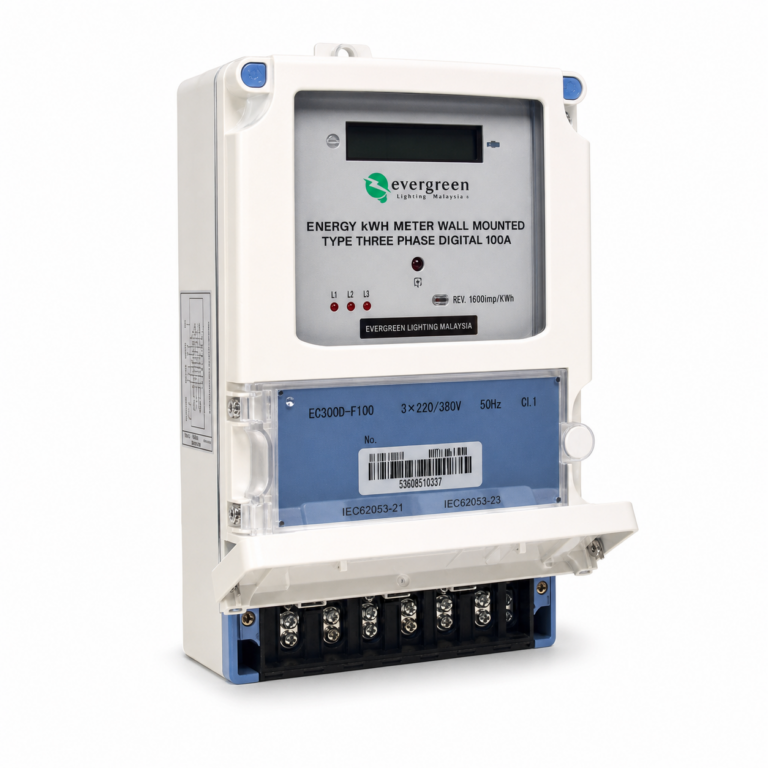

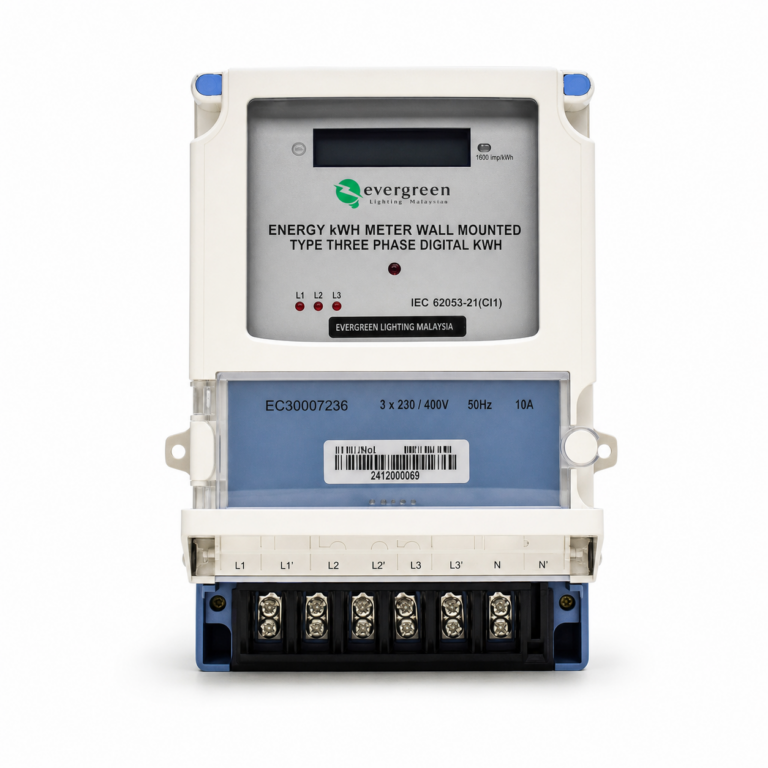

- Wall mounted type three phase 100A
Practical Benefits
- Suitable for monitoring electricity usage in supported single phase and three phase systems.
- DIN rail options are suitable for compatible distribution board installations.
- Wall mounted options are suitable where a surface-mounted meter format is required.
- Multiple current rating options help match the meter to the installation requirement.
Specifications
| Type | Phase | Supported Rating |
|---|---|---|
| DIN rail type | Single phase | 40A |
| DIN rail type | Three phase | 100A |
| Wall mounted type | Single phase | 40A |
| Wall mounted type | Single phase | 100A |
| Wall mounted type | Three phase | 100A |
Ideal Applications
- Electrical distribution monitoring
- Residential, commercial, or utility-style metering setups where the phase and current rating match the installation
- Replacement or new installations requiring DIN rail or wall mounted kWh meter formats
Ordering And Installation Checks
- Confirm whether the installation is single phase or three phase before ordering.
- Confirm the required current rating, such as 40A or 100A, with a qualified electrician.
- Check whether the installation requires a DIN rail type meter or a wall mounted type meter.
- Confirm compatibility with the existing distribution board, enclosure, and wiring arrangement before installation.
Frequently Asked Questions
Are these meters for single phase or three phase use?
Supported options include single phase and three phase kWh meters. The correct version should be selected based on the electrical supply.
What ratings are available?
Supported ratings include 40A and 100A options, depending on the meter type and phase configuration.
Can these meters be installed on a DIN rail?
DIN rail type options are available for compatible installations. Wall mounted type options are also available.
Who should install this product?
Installation should be handled by a qualified electrician who can confirm the phase, current rating, wiring, and enclosure requirements.
